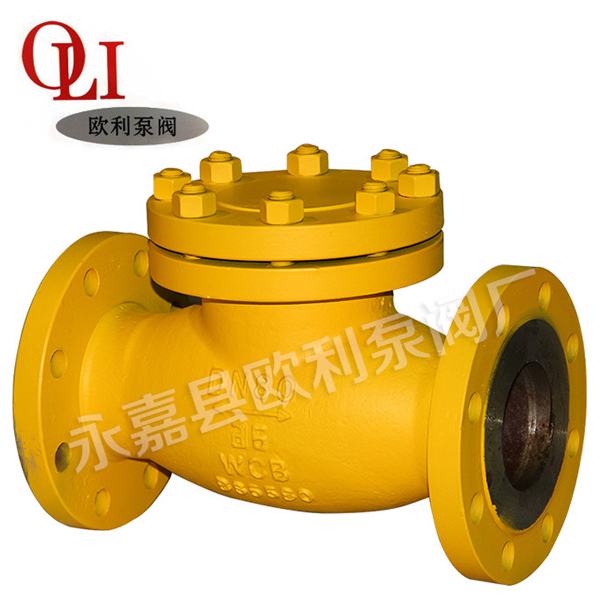

            Ammonia with the swing check valve

				Dateline:2014-11-30    Hits:


            - stable quality: the implementation of quality control, the whole process of nuanced,omnidirectional detection!
            Reasonable price: high efficiency, internal cost control, reduce the expenditure, to help customers!
            - quick delivery: advanced production lines, ample supply, shorten the time of delivery!
            Pipeline various conditions - H44B PN16~PN250 swing steel check valve is applicable to pressure 1.6~25MPa working temperature of -29~+550 DEG C petroleum,chemical, pharmaceutical, chemical fertilizer, the electric power industry and so on, for medium is water, oil, steam, acid medium.
            [features]
            H44B, swing steel check valve is generated by the pipeline flow of the medium itselfforce automatically turned on and off, is an automatic valve. Check valve for pipeline system, its main role is to prevent the media back, to prevent the pump and drive motor machine inversion, and the container medium discharge. Check valve can also be used for the pipe to the pressure may rise to more than one main system pressureauxiliary system supplies the.
            Model H44H-16C~250 H44W-16P~250
            The working pressure (MPa) 1.6~25
            Applicable temperature (c) = 425 = 550
            Applicable medium of water, steam, oil and weak corrosive medium
            Material of valve body, valve cover, valve carbon chromium nickel titanium and stainless steel
            Sealing surface of carbon steel surfacing iron-based alloy body seal
            The performance parameters of []
            Main external and connecting dimensions
            Nominal diameter of DN main dimensions and connection dimensions
            L D D1 D2 B Z-d H
            H44B-16C
            25160115856516 4-14 100
            321801351007816 4-18 105
            402001451008516 4-18 115
            5023016012510016 4-18 135
            6529018014512018 4-18 142
            8031019516013520 8-18 165
            10035021518015520 8-18 180
            12540024521018522 8-18 210
            15048028024021024 8-23 233
            20050033529526526 12-23 304
            25055040535532030 12-25 348
            30065046041037530 12-25 390
            35075052047043534 16-25 430
            40085058052548536 16-30 468
            H44B-25
            25160115856516 4-14 100
            321801351007816 4-18 105
            402001451108516 4-18 115
            5023016012510020 4-18 160
            6529018014512022 8-18 175
            8031019516013522 8-18 185
            10035023019016024 8-23 220
            12540027022018828 8-25 248
            15048030025021830 8-25 276
            20055036031027834 12-25 350
            25065042537033236 12-30 410
            30075048543039040 16-30 430
            35085055049044844 16-34 518
            40095061055050548 16-34 560
